Wireless Vibration Sensor High Sensitivity
Features
- Full waveform and spectrum data
- Programmable Internal RMS Trigger
- Low spectral noise
- Selectable measurement range up to 8G
- Configurable Alarm interval
- Standby mode and long battery life
- Selectable Recording time 1s / 2s / 4s / 8s / 16s
- Configurable Measurement Interval
- Speed + Vibration Integration
- Configure your sensor using your mobile
- IP67 Design for protection from liquid and dust

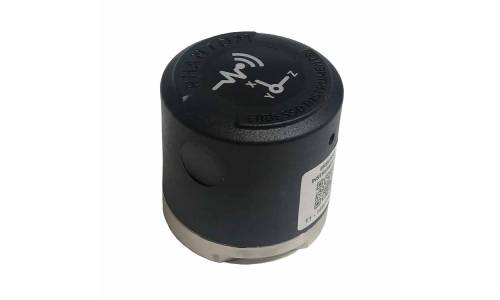

EPH-V10 | Wireless Vibration Sensor – High Sensitivity
Phantom EPH-V10 is a High Sensitivity Wireless Vibration Sensor able to send 3 simultaneous FFT and Time waveform recordings at once. Also, our Wireless Vibration Sensor wake up on high vibration levels in order to send data and alarms.
As an additional value, our Wireless Vibration Sensor have a built-in integrator, as a result, it can internally calculate velocity parameters for alarms. This way, RMS values can be sent as well with a selectable periodicity.
Condition Monitoring & Industrial Automation | Modbus
Wireless Modbus Vibration Sensor — EPH Sensors include Modbus Protocol for industrial applications. Compatible with Condition Monitoring systems, Scada Systems PLC etc.
Modbus is the most important Standard for Industrial Communication Protocol. In conclusion, your Wireless Vibration Sensor is totally compatible with any PLC, Scada system or any other Modbus TCP / IP communication system.
DATASHEET | Wireless Vibration Sensor - High Sensitivity
Measurement
Part Number | EPH-V10 | |
Sensor | MEMS Tri-axis accelerometer | |
Frequency Range (@25600 SR) | 4kHz (x,y); 1.8kHz (z) | |
Dynamic Range | 2 / 4 / 8 G | |
Internal Temp. Accuracy | ±5°C | |
Status (Every 5min) | Internal RMS, Battery, Temperature, Alarm |
Recording Time(s) |
1 |
2 |
4 |
8 |
16 |
Sample Rate (Hz) |
25600 |
12800 |
6400 |
3200 |
1600 |
Max Frequency (Hz) |
4000 |
2000 |
1000 |
500 |
250 |
Lines of Resolution |
6400 |
Data Interval | 10 minutes Configurable or Specific Daytime |
Alarm monitoring | 2 - 120 sec. |
Spectral Noise (10 Hz) | 130 µg/√Hz |
Connectivity and software
Wireless Protocol | Bluetooth BLE 5.0 / Modbus via Gateway |
Operating Frequency | 2.4 GHz |
Power Output Range | -4dBm to +8dBm |
Wireless Range | 150m Line sight |
Software Compatibility | DigivibeMX version Phantom, M30, WiSER VIBE |
Power Supply
Main Power | Lithium battery mod. "1/6D" - 3.7V - 1.7Ah |
Battery Life Time | 2 - 4 years |
Dimensions and fixture
Dimensions (d x h) | 48 x 44 mm |
Resistance to Shocks | 5000 g |
Weight | 177 gr |
Enclosure Material | ABS / Stainless Steel |
Protection Rating | Water and dust resistant IP67 |
Fixture | Fastener 1/4-28 UNF |
Environmental conditions
Base Temperature Range | -40 to +80 °C (-40 to +176 °F) |
