Laser Shaft Alignment Tool VLSAT Pro

Scroll down

The VIBRO-LASER PRO model is a comprehensive shaft alignment system, combining all the common features with a choice of bolt or base coupling. The VIBRO-LASER shaft alignment system provides users with 4 different measurement methods. In addition, it adds the advanced features of the most powerful shaft alignment tools.

VLSAT is available on:

How To Use

Select tolerances or enter your tolerance values. Select coupling type (machine).

Insert the dimensions. Select which pairs of feet are locked.

Take a measurement by turning the sensors.

Measurement results. Save the results by tapping the diskette icon

Live aligning in any angle position of the measuring units.

Save report.Select photo or logo.

The VIBRO-LASER PRO model includes a machine train feature for aligning shafts of up to five interconnected machines.

Softwares

Horizontal Alignment

A brand-new step by step, intuitive interface with 3D animation simplifies the operator's work and reduces time spent on alignment. A unique memory management system allows you to save progress at any stage of the process and resume whenever you want

SmartSpin^™

The measured values are automatically recorded during shaft rotation. With hundreds of points registered SmartSpin™ provides the greatest possible repeatability of measurements. You can start measuring at any shaft position.

SmartAngle^™

Take measurements at any three positions of the shaft rotation. Turn shafts in any direction at least by 20 degrees and register the results. This mode is extremely helpful when the clock method is off limits.

Soft Foot Check

Adjust machine feet beforehand for better results. Soft foot check option is designed specically for this job. The program analyzes the position of machine feet, indicates if any of them need adjustment, and saves all values for the further work.

Select Coupling Type

This option allows you to specify the coupling type used for shaft connection – i.e., short flex or spacer shaft.

User Defined Tolerance

Specify the alignment tolerance and user definnable tolerances in advance according to the machine rotation speed.

VibeDr^™

VibeDr filters vibration related influences that can negatively impact precision alignment thus insuring the machines in the same proximity do not adversely effect your alignment job.

Save Job^™

Save Job Feature - Allows user save alignment job status at any time and return to the job at a later time

Thermal Growth Expansion

Automatic compensation system for the thermal growth expansion of machines allows to keep the effciency of alignment in any environment.

Live Move Mode

Allows live aligning in any angle position of the measuring units. When it is not possible to install the measuring units strictly in the 9–12–3 hours position.

Repeatability Table

Allows choose any from the last 10 measurements that you have taken based on which further actions will be carried out

Clock Method

The 9-12-3 o'clock method is the basic method for taking measurements. It requires a clear set of units at the 9, 12 and 3 o'clock positions.

SmartPoints^™

This multipoint method allows you to record an unlimited number of points at any sector of the shaft circumference. It is perfect for centering turbines and machines with sleeve bearings..

Vertical/Flange Mounted Machines

Measure and align vertical and flange machines with a program specially created for this purpose.

Bolt or Base Bound

Get any pair of feet locked on the machine. Enabling this option will ensure precise results when aligning base-bound or bolt-bound machines.

Machine Train

Enable this option and align shafts of up to five machines that are connected together

SmartFilter^™

Keep the alignment precise under any circumstances. The averaging filter reduced the influence of external visual challenges such as lighting, steam, and other visually impairing variables while taking measurements.

Sensor Readings^™

Monitor the data coming directly from the measuring units on the screen of your device.

User Friendly Reports

Save alignment reports in PDF, add photos of the unit, the company logo and work notes when necessary

Switchit^™

Simplify the measurements by selecting the machine location relative to an operator.

Shims Calculator

Allows user simulate changes in alignment results with virtual movement of the machine in horizontal and vertical planes.

SmartShift^™

When it’s necessary to change the position of the laser units or change the position of the laser on the detector during the measurement, you have to use feature the Smart Shift™

Specifications

Laser Emission

Diode laser with wavelength 635 nm, class II, < 1 mW

Operating time

>20 hours

Measuring accuracy

0.3% ± 7um

Dimensions

90 mm x 60 mm x 32 mm

(3.5in x 2.3in x 1.2in)

Detector type

Latest generation of industrial linear detector

Detector resolution

0,001 mm

Detector receiver length

30 mm

Protection class

IP67

(Dust-tight and protected against water)

Operating temperature

From -20^oС to +55^oС

(14 to 122^oF)

Connection type

Bluetooth 4.0

Distance between units

Up to 10 m

(33ft)

What is in case

Measuring units

2 Units (S, M)

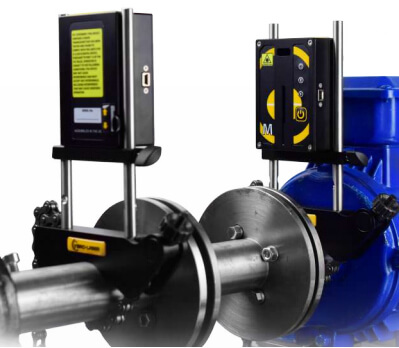

The M and S measuring units use laser and CCD technology for precise shaft misalignment measurements. Mounted on opposing shafts, they provide real-time updates, optimizing operations and reducing downtime.

Chain V-Brackets

2 Units

V-bracket with chain is used to fix the measuring units on the shaft diameter 25 – 225 mm / 1 in – 8.6 in.

Extension chain

2 Units (with carabiner)

Used for mounting on larger diameter shafts. Installed in addition to the standard chains.

Extension Rods

4 Units (120 mm)

Serve to increase the mounting height of the measuring units on the fixture.

Magnetic Base Brackets

2 Units

Measuring heads can be mounted onlarge diameter shafts with the magnetic base.

Magnetic V-Brackets

2 Units

Magnetic V-brackets are used for mounting the measuring units on the side of the coupling with strong magnets when chains cannot be used.

Offset Brackets

2 Units

Offset brackets are used when the space is limited. This type of mounting allows the racks to be moved out for convenient installa- tion of the measuring units.

div>

Measuring tape

1 Unit

Used to perform measurements before operating the measurements system.

Power adapter & USB cable

1 Unit / 2 Units

Adapter operates in collaboration with a USB cable to recharge the measuring units.

Display unit

1 Unit (Optional)

A unique tablet computer built specifically to increase fieldwork efficiency.

Tightening wrench

1 Units

Serves for the possibility of changing the attachment struts.

1 / 6

Accessories

Standart V-Brackets

Slim V-Brackets

Magnetic Base Brackets

Magnetic V-brackets

Offset Brackets

Non-rotating Brackets

Cardan Shaft Bracket Fixture

VLRTC Display Unit
