Wireless Vibration Sensor – Biaxial
Features
- Full waveform and spectrum data
- Programmable Internal RMS Trigger
- High frequency range up to 10kHz
- Biaxial Ultra Low-noise accelerometer
- Configurable Alarm interval
- Standby mode and long battery life
- Configurable Measurement Interval
- Configure your sensor using your mobile
- IP67 Design for protection from liquid and dust

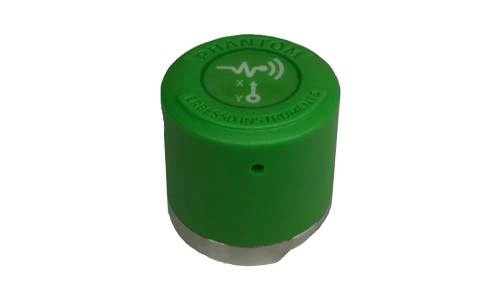

EPH-V12 | Wireless Vibration Sensor – Biaxial
EPH-V12 is a Wireless Biaxial Accelerometer. This sensor incorporates 2 standard ultra-low noise ICP accelerometers. Being able to send 2 simultaneous FFT and Time waveform recordings for bi-axis at once. Also, our wireless accelerometer can wake up on high vibration levels to send data and alarms.
This Biaxial Wireless Vibration Sensor was designed for low speed machinery. EPH-V12 have a built-in integrator so it can, internally, calculate velocity parameters for alarms. This way, RMS values can be sent as well with a selectable periodicity.
Condition Monitoring & Industrial Automation | Modbus
Wireless Modbus Vibration Sensor — EPH Sensors include Modbus Protocol for industrial applications. Compatible with Condition Monitoring systems, Scada Systems PLC etc.
Modbus is the most important Standard for Industrial Communication Protocol. In conclusion, your Biaxial Wireless Vibration Sensor is totally compatible with any PLC, Scada system or any other Modbus TCP / IP communication system.
Measurement
Part Number | EPH-V12 |
Sensor | Ultra-low noise piezoelectric sensor |
Frequency Range (X,Y) | 0.5Hz - 10kHz |
Dynamic Range | ±3 g |
Sample Rate | 44100 Hz |
Internal Temp. Accuracy | ±5°C |
Status (Every 5min) | Internal RMS, Battery, Temperature, Alarm |
Recording Time | 1 sec. per channel |
Data Interval | from 10 minutes |
Alarm monitoring | 2 - 120 sec. |
Spectral Noise (10 Hz) | 28 µg/√Hz |
Connectivity and software
Wireless Protocol | Bluetooth BLE 5.0 / Modbus via Gateway |
Operating Frequency | 2.4 GHz |
Power Output Range | -4dBm to +8dBm |
Wireless Range | 150m Line sight |
Software Compatibility | DigivibeMX version Phantom, M30, WiSER VIBE |
Power Supply
Main Power | Lithium battery 1/6D / 3.7V / 1.7Ah |
Battery Life Time | 1 - 2 years |
Dimensions and fixture
Dimensions | 48 x 44 mm |
Resistance to Shocks | 5000 g |
Weight | 180 gr |
Enclosure Material | ABS / Stainless Steel |
Protection Rating | Water and dust resistant IP67 |
Fixture | Fastener 1/4-28 UNF |
Environmental conditions
Base Temperature Range | -40 to +80 °C (-40 to +176 °F) |
