Wireless Temperature Sensor Infrared

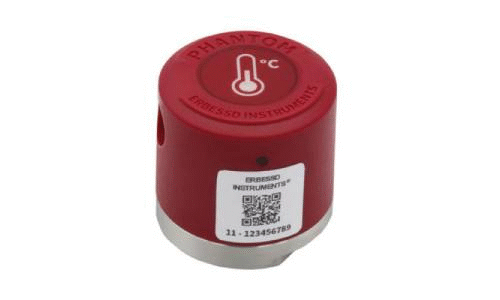

EPH-T20 | Wireless Temperature Sensor – Infrared

This Wireless Temperature Sensor embeds an IR sensor and brings you the commodity of technology: No wires. The sensor can read temperature up to +380°C with a distance of 1 meter using a high technology thermo receptor with an amazing accuracy. His battery last as long as any other Phantom sensor and can be easily replaced if needed.

Condition Monitoring & Industrial Automation | Modbus

Wireless Modbus Temperature Sensor — EPH Sensors include Modbus Protocol for industrial applications. Compatible with Condition Monitoring systems, Scada Systems PLC Etc.

Modbus is the most important Standard for Industrial Communication Protocol. In conclusion, your Wireless Temperature Sensor is totally compatible with any PLC, Scada system or any other Modbus TCP / IP communication system.

Measurement

Part Number

EPH-T20

Sensor

Infrared Thermometer

Temperature Range

Ambient - 40 to +125 °C
Object - 70 to +380 °C

Internal Temp. Accuracy

±5°C

Sensing Angle

90°, for every 1cm you move away from an object, the sensing area grows by 2cm.

Status

Battery, Temperature sensor, Temperature object

Data Interval

5 minutes not configurable

Connectivity and software

Wireless Protocol

Bluetooth BLE 5.0 / Modbus via Gateway

Operating Frequency

2.4 GHz

Power Output Range

-4dBm to +8dBm

Wireless Range

150m Line sight

Software Compatibility

DigivibeMX version Phantom, M30, WiSER VIBE
Update firmware via Phantom Manager app (Available on iOS and Android)

Power Supply

Main Power

Lithium battery mod. "1/6D" - 3.7V - 1.7Ah

Battery Life Time

2 - 3 years
Standby mode if no Gateway detected

Dimensions and fixture

Dimensions (d x h)

46 x 43 mm

Weight

160 gr

Enclosure Material

ABS / Stainless Steel

Protection Rating

Water and dust resistant IP67

Fixture

Fastener 1/4-28 UNF

Environmental conditions

Base Temperature Range

-40 to +80 °C (-40 to +176 °F)
