Wireless General Purpose Sensor

Overview

EPH-G60 | Wireless General Purpose Sensor

Use it with any available Sensor in the Market. The general purpose wireless sensors are able to monitor virtually any type of signal and is compatible with other kind of sensors including: Displacement, speed and proximity. All our General Purpose wireless sensors come with a LEMO connection adapter with capability of up to 2 Analog channels.

Condition Monitoring & Industrial Automation | Modbus

Wireless Modbus Vibration Sensor — EPH Sensors include Modbus Protocol for industrial applications. Compatible with Condition Monitoring systems, Scada Systems PLC etc.

Modbus is the most important Standard for Industrial Communication Protocol. In conclusion, your Wireless General Purpose Sensor is totally compatible with any PLC, Scada system or any other Modbus TCP / IP communication system.

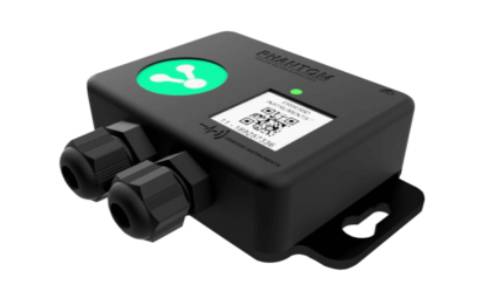

wireless-general-purpose-sensor

Measurement

Part Number

EPH-G60

Range AC

2.5 Vpp

Sample Rate

31250 Hz

Input

2 Channel

Internal Temp. Accuracy

±5°C

Status (Every 5min)

Battery, Temperature sensor, RMS

Recording Time

1 sec. per channel

Data Interval

minimum every 10 minutes (Configurable)

Included Accessories

Cable with 2 BNC connectors

Connectivity and software

Wireless Protocol

Bluetooth BLE 5.0 / Modbus via Gateway

Operating Frequency

2.4 GHz

Power Output Range

-4dBm to +8dBm

Wireless Range

150m Line sight

Software Compatibility

DigivibeMX version Phantom, M30, WiSER VIBE
Update firmware via Phantom Manager app (Available on iOS and Android)

Power Supply

Main Power

Lithium battery mod. "1/6D" - 3.7V - 1.7Ah

Battery Life Time

2 - 3 years
Standby mode if no Gateway detected

Dimensions and fixture

Dimensions (d x h)

46 x 43 mm

Weight

160 gr

Enclosure Material

ABS / Stainless Steel

Protection Rating

Water and dust resistant IP67

Fixture

Fastener 1/4-28 UNF

Environmental conditions

Base Temperature Range

-40 to +80 °C (-40 to +176 °F)
