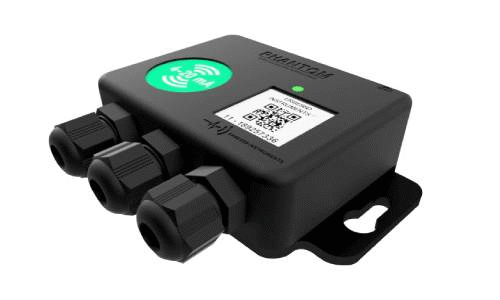

EPH-G61 | Wireless 4-20mA Sensor

Phantom EPH-G61 features an upgraded version with 16 bits and 4-20 mA input interfaces. This means that you can use any other sensor that can provide a 4-20mA signal to implement your data into an integrated wireless system.

Condition Monitoring & Industrial Automation | Modbus

Wireless Modbus 4-20mA Sensor — EPH Sensors include Modbus Protocol for industrial applications. Compatible with Condition Monitoring systems, Scada Systems PLC etc.

Modbus is the most important Standard for Industrial Communication Protocol. In conclusion, your Wireless 4-20mA Sensor is totally compatible with any PLC, Scada system or any other Modbus TCP / IP communication system.

Measurement

Part Number

EPH-G61

Input

4 Channels

Input Range

4-20 mA CC

Internal Temp. Accuracy

±5°C

Status (Every 5min)

Battery, Temperature, 4-20mA value per channel

Data Interval

5 minutes not configurable

Connectivity and software

Wireless Protocol

Bluetooth BLE 5.0 / Modbus via Gateway

Operating Frequency

2.4 GHz

Power Output Range

-4dBm to +8dBm

Wireless Range

150m Line sight

Software Compatibility

DigivibeMX version Phantom, M30, WiSER VIBE
Update firmware via Phantom Manager app (Available on iOS and Android)

Power Supply

Main Power

Lithium battery mod. "1/6D" - 3.7V - 1.7Ah

Battery Life Time

2 - 3 years
Standby mode if no Gateway detected

Dimensions and fixture

Dimensions

48 x 43 mm

Weight

160 gr

Enclosure Material

ABS / Stainless Steel

Protection Rating

Water and dust resistant IP67

Fixture

Fastener 1/4-28 UNF

Environmental conditions

Base Temperature Range

-40 to +80 °C (-40 to +176 °F)
